Spline gear hob with Involute flanks to DIN 5480
2021-11-11 10:40:16
jiangxingTools
3883

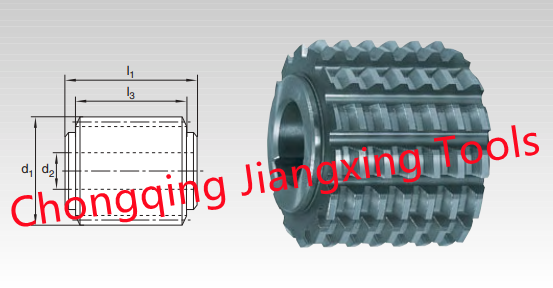

Spline gear hob with Involute flanks to DIN 5480
Hobs for spline shafts with involute flanks to DIN 5480
30° pressure angle
quality grade A to DIN 3968
single start right-handed, with keyway

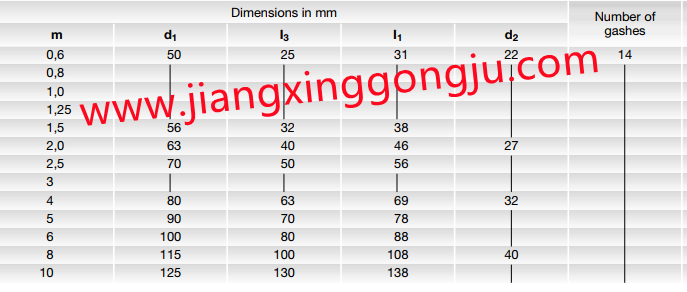

Conventional dimensions for involute spline gear hob with profile to DIN 5480 as following:
Please get in touch us for more details on involute spline gear hob, large module gear hob, chain sprocket hob, worm wheel hob, timing pulley hob, etc HSS Gear Hob Cutters.
