Standard Chain Sprocket Hobs
2023-05-30 11:40:04
jiangxingTools
1929

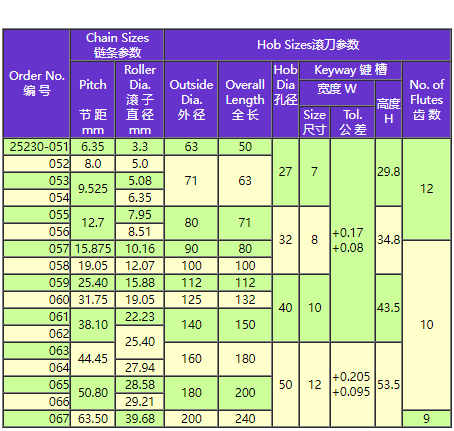

Standard Chain Sprocket Hobs
Standards: GB, ANSI, ASA, IS, DIN, JIS-B
all standards of chain gear hobbing are in stock.
Material: S390/ASP2052/ASP2030/S290/ASP2060/M35/M42/M2
Types: Topping & Non-topping
Threads: Single or multi-threads for high-speed cutting.
Sprocket Pitch Range: 3.5 inch or 90mm
