Deep Counterbore Type Shaper Cutters with DIN 1826
2023-03-29 14:33:45
jiangxingTools
2063

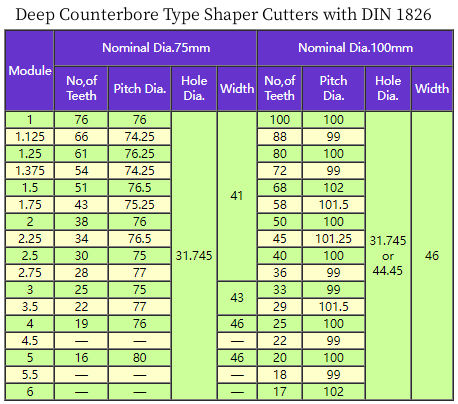

Deep Counterbore Type Shaper Cutters with DIN 1826
These shaper cutters are 20° PA, non-topping finishing cutter for spur gears.
Tooth profile to DIN 3972 profile Ⅱ, other profile Ⅰ, Ⅲ, Ⅳ can also be supplied as request.
Normallu, Bore sizes for above shaper cutters is 31.743mm or 44.443mm
